The main menu of TK-FORM is accessed by invoking the following code:
D ^TKFORMEThe suffix "E" is for "Edit".

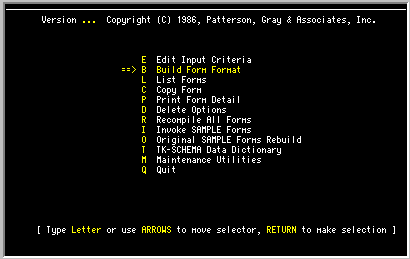

The following menu now appears on your screen:
Notice that the selector comes to rest on the first item, Edit Input Criteria. You may move the selector up and down with the cursor keys or you can press the letter of the desired option. If you have selected "RETURN Required on Menus" in the ^TKINIT initialization routine, then you will also have to press the RETURN key after you press the letter.
Each of the menu items are briefly described below:
| MENU OPTION | DESCRIPTION |
| E Edit Input Criteria | Enables direct access to the editing of Form Attributes and Field Attributes. Form Drawing can not be edited from this menu option. |
| B Build Form Format | Enables the entering and editing of Form Drawing, Form Attributes, Fields, and Field Attributes. |
| L List Forms | Displays Form Series name, Form Number, and Title of each form in the TK-FORM system. |
| C Copy Form | Duplicates selected form; this feature can be useful when modifying and saving forms. |
| P Print Form Detail | Prints Form Attributes and Field Attributes of selected form. |
| D Delete Options | Purges an individual field or an entire form. |
| R Recompile All Forms | Builds all the internal control information required to invoke forms. Note: this is to be used according to vendor instructions when installing updates to TK-FORM, or when adding new types of terminals to your TK-FORM system. |
| I Invoke SAMPLE Forms | Provides user with option to run the set of SAMPLE forms provided with your TK-FORM package. |
| O Original SAMPLE Forms Rebuild |
Provides user with option to restore the SAMPLE forms to original specifications. |
| T TK-SCHEMA Data Dictionary |
Optional data dictionary utility that enables the system designer the ability to define all the data definitions before using the TK-FORM Build Form Format option. |
| M Maintenance Utilities |
Other utilities for site specific parameters, exporting forms and providing global cross references. |
| Q Quit | Exits the forms editor ^TKFORME. |
Choose the menu item, "B Build a Form Format", and press RETURN. Another screen with the prompt, "Enter the Form Series", will appear. Up to ten alphanumeric characters may be entered to describe a form series.
Enter the Form Number __________
If you enter a "?" at either prompt, TK-FORM will list the series or numbers which currently exist.
Remember that you may use the cursor up, cursor down, cursor left, cursor right, insert character, delete character and rubout (del) keys anywhere while using TK-FORM. Although their use may be limited in certain situations, it is helpful to remember that you don't have to retype entries, but that you can edit the current contents. |
Once a Form Series name is entered, you will be prompted for a Form Number. The form driver will $Order through the form numbers, so that these form numbers need not be serial numbers. Up to ten characters may be entered. Enter a number and press RETURN. You will be asked to confirm that it is a new form. Press RETURN again to continue.

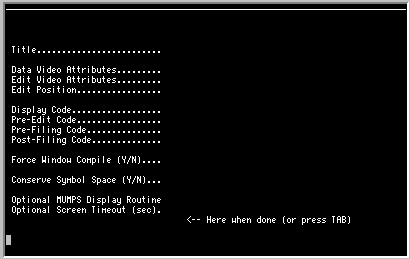

The first screen of the edit and build options is the Field Attributes screen as listed below:
Title
The title may have up to 40 characters. The title should be carefully chosen to reflect form content, since it is this title which is added to the menu allowing users to select among different forms within a series.
Data Video Attributes
You may choose to display fields or data that has been entered on a form in one or more of the following video attributes:
R - Reverse Video
H - High Intensity
U - Underlining
"." ............Default = Normal Video Display
Edit Video Attributes
Video attribute options for data that is being entered or edited include any of the following:
R - Reverse Video
H - High Intensity
U - UnderliningDefault = Normal Video Display
Edit Position
R - Right
L - LeftDefault = Left
You can choose to place the cursor to the right or to the left of the data entry field for a given data element. We recommend placing the cursor at the left of the field for most data entry operations: it is easier for the eye to find the cursor in a consistent, predictable position than in a dynamic one (such as that at the end of a field).
Display Code (eXecutable)
This is a line of optional MUMPS code which is eXecuted by the TK-FORM driver. If no code is entered, the driver clears the screen prior to painting the form. If MUMPS code is entered, the screen is not cleared by the driver.
Pre-Edit Code
This is a line of optional MUMPS code which is eXecuted by the TK-FORM driver once the screen is painted and the data is displayed. If the screen is run in "Q" mode, QUIT mode (see section 5.2), this code is not invoked. If the edit control question is invoked prior to data editing, this code is invoked after the edit control question. If the edit control question is answered "Q", quit, by the user, then this code is not invoked.
The purpose of this code is to allow pre-processing of the screen. For example, it will typically be used to deactivate a field prior to any editing.
Pre-Filing Code
This is a line of optional MUMPS code which is eXecuted by the TK-FORM driver once data entry is completed but prior to filing. If the screen is run in "Q" mode, QUIT mode (see section 5.2), this code is not invoked. If the edit control question is asked and its answer is not "C", cancel, then this code is invoked.
The purpose of this code is to perform final edit checks before filing the data. For example, you can perform a tie-out of detail to a batch total. Another example is checking a number of fields for functional dependencies, something which might be too difficult on a per-field basis during data entry because all the values are not present, thus it is easier once all of the data has been entered.
If the PRE-FILING code returns $T=FALSE, TK-FORM returns control back to editing. Your application may use the variable named "er" to pass an error message back to TK-FORM. TK-FORM will display this error message on the bottom row of the screen prior to commencing with re-editing.
If the PRE-FILING code does find an error, it may specify the field to start re-editing. The field may be targeted if the PRE-FILING CODE invokes the TK-FORM BRANCH operator, thus naming the field to branch to (see TK-FORM Operators). If no field is targeted, editing resumes at the first field on the form.
Another use of the pre-filing code might be to KILL the MUMPS record before the filing. This might be necessary for grouped data (see Section 6).
Post-Filing Code
This is a line of optional MUMPS code which is eXecuted by the TK-FORM driver once the data entry has been completed and the data has been filed. If the screen is run in "Q" (QUIT) mode (see section 5.2), this code is not invoked. If the edit control question is asked, this code is invoked unless the response to the edit control question is "C" for cancel.
The purpose of this code is to allow inter-form data manipulation and/or control. The edited data can be inverted, keyed, computed, etc., or the form series control may be altered, e.g., the series may be terminated or the series may branch to a specified form in the series apart from the original series order.
Force Window Compile
If a program is invoked which is not part of the TK-FORM package, and which paints a display foreign to TK-FORM, then Force Window Compile should be answered YES to refresh the screen. By compiling the window and properly invoking the foreign display, TK-FORM will refresh its own display once the foreign display is removed. See section 4.6, Refreshing the Form, for instructions on how to manually refresh the display.
Please note that you can only change this question if you entered via "B Build Form Format". Changing Force Window Compile from "E Edit Input Criteria" has no effect because TK-FORM must have its control files for a form's drawing built in order to compile windowing.
If the form has Table fields that contain pop-up menu parameters in the Menu Parameters line, then TK-FORM will force a window compile automatically.
Conserve Symbol Space
Depending on your MUMPS implementation, you might have a local variable storage problem. If you do, answer "Y" to this question. TK-FORM will optionally use the scratch global ^TKF($J).
Optional MUMPS Display Routine
For some MUMPS operating systems it is more efficient to execute routine lines than to execute from globals. Since TK-FORM contains all of its screen information in globals you may choose to have the display, fetch and put logic in a MUMPS routine. If so, enter the name of the routine that you want it stored in.
Optional Screen Timeout
You may specify the length of time in seconds that the user can be inactive within a form. Once the time has expired, all screen processing will cease as if the user had pressed "EXIT" and then the "CANCEL" Edit/Control question option. No data will be stored and any post processing that might exist will not be executed. TK-FORM will indicate that it has timed out by returning "C-TIMEOUT" in the return control piece of the tkform variable.
In order to establish a timeout period, enter a numeric value equal to the number of seconds allowed for inactivity. Remember the timer is started over each time the user performs some operation in the form.
Once the Form Attributes are complete, TK-FORM allows you to paint the form. Note that TK-FORM reserves the last two lines of the form for error messages, help text, general directions, and edit control questions. These two lines appear at the bottom of the form painting screen:
Screen: Video Mode: Control Keys: E(Erase Line), F(Fields), L(Lines), V(Video), X(eXit)
Moving the Cursor: (Cursor Step Keys)
Text can be moved and entered anywhere on the screen (even on the bottom line). The cursor is moved with the cursor keys. The RETURN key moves the cursor to the left side of the screen on the same line. Notice that the current row and column position is displayed on the bottom line of the screen. You may be tempted to use the space bar to move the cursor to the right, but remember that if you space over text or graphics already on the screen it will be erased.
Video Modes: (Control V)
The screen is first initialized to the TEXT mode in normal video, high intensity. Everything typed on the screen will be displayed, stored and displayed again in that mode. The video mode may be changed at any time by pressing the Control V key. The cursor will jump to the bottom line and you will be asked to enter a R, H, or U for Reverse Video, High Intensity, and Underline. You can simply press RETURN to change the video mode to normal video, low intensity; or you can enter one or more of these letters to switch on the corresponding video characteristic. Every character typed on the screen after switching the video mode will then be displayed in the new mode. The mode may be changed at any time within a form.
NOTE: Some terminals use Control V for cursor positioning. Control W may be used as an alternate control character to change the video mode.
Line Drawing: (Control L and Control E)
As mentioned, TK-FORM is initially set up in TEXT mode. You may change to the LINE mode by pressing the Control L key. In the LINE mode all keys on the keyboard will work as in TEXT mode except for the cursor keys. In LINE mode the cursor keys can be used to draw lines on the screen. You may change back to the TEXT mode by pressing Control L. You may remove any line drawing by spacing over it. To erase continguous lines, place the cursor on the line to be erased and press Control E, for Erase.
NOTE: Some terminals use the Control L for cursor positioning. You can use control Control G as an alternate control character to toggle the line drawing mode.
Positioning a Field: (Control F)
You place data fields on the the screen by moving to the correct position and then marking the spot by pressing Control F. Once Control F is entered, TK-FORM asks for a field identifier. Enter an all-alphabetic name to identify the field. The Field Attributes are then entered. Help text is available by pressing "?". See section 4.5 for a discussion of Field Attributes. TK-FORM will scroll through the field attributes at the bottom two rows of the screen. Once the mandatory fields are answered, you may elect to press TAB to terminate answering the field attribute questions.
If you have defined your data elements using TK-SCHEMA, you need only enter the TK-SCHEMA name in place of the data identifier. You indicate that you are using a TK-SCHEMA name by enter a "^" character first followed by the data dictionary name. TK-FORM will then pull the necessary Field Attributes from the TK-SCHEMA file and insert it into your form. Some of these attributes may not be modified in TK-FORM.
When defining a new field, TK-FORM will ask you if you want to copy the attributes from another field within the screen. If so, enter the name of the field, otherwise just press RETURN.
Exit Drawing: (Control X or R)
Once you have completed drawing and placing data fields on the screen, press Control X to enter the editing order of the fields. You define the field editing sequence. This sequence may be changed at any time. TK-FORM will now compile your form. While your form is compiling, you will see each CRT type listed as its form is being compiled.
4.4 Declaring TK-FORM Variables
TK-FORM first paints a form and then allows data entry or editing. Each data field may have many optional operators invoked before the field is painted; or before, during, or after it is edited. The operand for these operators is the variable X. Most of the operators are eXecuted. Since they are eXecuted, you must take the precaution of maintaining TK-FORM's scope and communication methodology.
Variable X
Variable X may be altered by most of the operators. The operators must not KILL the variable X.
Variable Collision
If an application program is invoked by the operator, care must be taken to protect the scope of TK-FORM. The easiest technique to accomplish this is to invoke NEW at the beginning of the operator. For example, if the field is a date field, and the VALIDATION operator is to check for a valid date with your MUMPS routine ^GOODDATE, it should be as follows:
NEW (X) DO ^GOODDATE
This maintains all of the variables in TK-FORM.
NOTE: It is possible to avoid using NEW to maintain variable scope. Some implementations of MUMPS are slow in executing the NEW command so you may choose to use the following guidelines:1. Most of TK-FORMs internal variables consist of one-to-three character variable names beginning with a lowercase letter.
2. Those variables not following this convention include: A, B, C, D, E, I, J, L and TK
as well as those control variables mentioned in the following section.3. You will need to also watch any variables that you may define for subscripts, flags, display only, etc.
TK-FORM Control Variables
See ^TKDEV for a description of the TK array. This array contains all of the video attributes.
TK-FORM uses the following variables as control variables:
| I | = a TK-FORM system variable. DO NOT USE within a form! NEVER CHANGE THE VALUE OF I! | |||||||||||||
| REFRESH | = refresh region; see discussion in section 4.6. | |||||||||||||
| RX | = read X terminator. Described below are the results of RX assuming
the following values:
| |||||||||||||
NOTE: if RX is set in a field attribute, RX may override the user's
function key intention. For example, if the user finishes editing a field
with a cursor up key, and a field attribute sets RX=5, TK-FORM will jump
forward five fields rather than jump backwards one. To resolve this, the
code which set RX=5 should be as follows:S RX=$S(RX=1:RX=5,1:RX) |
| SCR | = form series name |
| SN | = current form number |
| SNL | = form number list, see section 5.3, Form Order, for more information. |
| TKP | = cursor positioning, used with %R and %C. Invoke with "W @TKP". |
| Y | = the current field's data. See ^TKFRMEA for documentation. DO NOT CHANGE. |
| ZF | = a system variable. |
| %C | = when present, the current column or beginning of field, counting from 1. |
| %R | = when present, the current row, counting from 1. |
| ESCAPE | = TKFORM escape control allowing a quick "escape" from the screen temporarily. See section 5.4. |
| ECTL | = optional Edit/Control Question wording. |
4.5 Programming Field Attributes
The next screen displayed by TK-FORM allows you to set field attributes. If you have left the TK-FORM sequence followed in this manual, remember that you can access this screen by invoking the TK-FORM editor:
D ^TKFORMEYou then select menu item "E Edit Input Criteria" and press RETURN after the Form Attributes screen. The Field Attribute screen is now displayed:

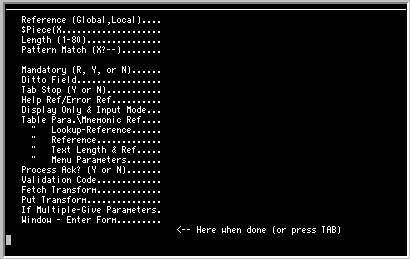

| TK-FORM FIELD ATTRIBUTES | |||||||||||||||||||||||||||
| Attribute | Description | ||||||||||||||||||||||||||
| REFERENCE | MANDATORY. Any legal MUMPS global or local
variable from where the data will be fetched or stored. All subscripts
used must be defined external to TK-FORM. Examples:
1. ^ROLODEX(ID,"NAME") might be the name in a rolodex. All of the fields in the SAMPLE forms have references. | ||||||||||||||||||||||||||
| $PIECE | If the data is to be pieced out of the above reference, enter the
$Piece syntax, such as $P(X,"^",3). See form SAMPLE-1, field NAME, for an example. You may also nest $PIECE functions to reference a subset of a piece, such as $P($P(X,"\",3),"^",1). | ||||||||||||||||||||||||||
| LENGTH | MANDATORY. Enter the allowable data length, a value from 1 to 80.
This determines the number of characters that the user may enter. An optional comma and value may follow the length to provide for right justified numbers. The syntax is similiar to the arguments of the $JUSTIFY MUMPS function so that a value of "12,2" in the length attribute would format the data right justified in a field of 12 characters with 2 places to the right of decimal point. Right justified values shift left when edited.
| ||||||||||||||||||||||||||
| PATTERN MATCH | String compare or match to validate input, such as:X?1.3U or "YN"[X or X?3N,X"300,X"600This expression will be invoked as "IF @pattern". Not invoked if X is nil. See form SAMPLE-1, field ZIP, for an example. | ||||||||||||||||||||||||||
| MANDATORY | Enter Y for YES, to indicate that the answer must be returned. This
is checked at the completion of the form. Enter R for real-time require: TK-FORM will not continue to the next field unless this field has an answer. Note that a "M" flag is displayed at the lower right corner when the field is entered for editing. For fields which are multiples and mandatory, TK-FORM only checks the first occurring item of the multiples to see if it was answered. If a user answers the first occurance as nil but completes other occurances, TK-FORM will consider the field as not answered. Use the "C" flag in the multiple parameters to force a check on each item. See form SAMPLE-1, field LAST, for an example. | ||||||||||||||||||||||||||
| DITTO | If this field is to be duplicated from another on
the screen, enter the field identifier of the source field. For example,
assume that HOME PHONE is identical to WORK PHONE, and that HOME PHONE
appears prior to WORK PHONE on a form. During editing WORK PHONE, the user
may press the DITTO function key; HOME PHONE then will be copied and
displayed in WORK PHONE. Note the "D" flag in the second to last row. See form SAMPLE-2, field RADDR, for an example. | ||||||||||||||||||||||||||
| TAB STOP | Enter Y if you want a TAB stop at this field. It
functions in the same way as a TAB stop on a typewriter. Good candidates
for TAB stop fields include any fields which are edited frequently, or
which are at the beginning of a logical group of questions. See form SAMPLE-2, field RNAME, for an example. | ||||||||||||||||||||||||||
| HELP/ERROR REFERENCE, |
Enter the HELP or ERROR references as are required. The format for
each reference is the same and is as follows:
OPERAND;OPERATOR;PARAMETERThere are four formats that are allowable for either the HELP or ERROR references: 1. ^GLOBAL This format will display the contents of the global on the bottom two lines of the screen. The default operand is a "W" for write and there is no parameter 2. ^GLOBAL;;TKPOP MENU PARAMETERS Displays the contents of the global in a pop-up window rather than the bottom. TKPOP parameters define where and how the pop-up should look. 3. ^ROUTINE;D;OPTIONAL PARAMETER The referenced routine is executed and the optional parameters are passed to the routine in the variable "hp". These parameters may be the error code, number or other context sensitive information. 4. STRING;X;OPTIONAL PARAMETER The referenced string is eXecuted and any optional parameters are passed in the "hp" variables. If either the first or second formats are used, the variable operand may be any legal MUMPS variable name, where operand(0) is the number of lines of the message and those lines are found in operand(1...n), such as ^HELP("NAME"), where: ^HELP("NAME",0)=2TK-FORM automatically refreshes the screen after displaying formats 1 and 2. In formats 3 and 4, if your MUMPS code changes the appearance of the form, then it is up to you to refresh it after your routine is finished. Please refer to Section 4.6, Refreshing a Form. Note that %R and %C are valid and point to the current field. Other HELP/ERROR reference notes:
|
| DISPLAY ONLY & INPUT TYPE |
The field may be designated as a display only field or have specific
input characteristics. The following parameters change the use of the
field as follows:
| |||||||||||||||||||
| TABLE ATTRIBUTES | The following five attributes are used when
defining a table lookup field. A field is designated a table lookup field
if there is a variable reference in the TABLE LOOKUP-REFERENCE attribute.
If it is blank, then all other entries in these five attributes are
ignored. There are currently six types of table lookups and each one has slightly different parameters. Section XX summarizes each of these types and how they are used and you will find a more detailed explaination of these attributes listed there. | |||||||||||||||||||
| TABLE PARA\ MNEMONIC REF | This two part attribute defines the TABLE PARAMETERS and an optional
MNEMONIC REFERENCE which is delimited from the parameters by a "\" (ASCII
92). Allowable parameters are: 0,1,2,3,4,5,A,D,F,H,K,L,V See Section XX for a more detailed explaination of each of these parameters. The MNEMONIC REFERENCE is only used in Type 1,2,3 and 5 tables where the displayed mnemonic is not the contents of the TABLE REFERENCE, but is another reference or is a $P or $E of the TABLE REFERENCE. | |||||||||||||||||||
| TABLE LOOKUP REFERENCE | The TABLE LOOKUP REFERENCE is a variable reference that is used by
TK-FORM to validate the user's entry and display the referenced table
item on either the screen or in the pop-up menus. This attribute is
manditory for table fields. Table types 1,2,3 and 5 use the TABLE LOOKUP REFERENCE in the lookup logic and validation, and use the TABLE REFERENCE in the display logic. | |||||||||||||||||||
| TABLE REFERENCE | This attribute is used with table types 1,2,3 and
5 to provide an alternate reference that can be accessed directly by the
table code. It is not used by types 0 and 4. See Section XX to see how it is used. | |||||||||||||||||||
| TEXT LENGTH & REFERENCE | To display the text of the table to the right of the field input,
enter the length of the display area. If the text is to be altered prior
to its display, include the appropriate MUMPS code in this format:
length,MUMPS FUNCTION For example, if the fifth piece of a string is to be displayed in a 20 character field, enter:
20,$P(^TABLE("RELIGION",X),";",5)The "L" parameter in the TABLE PARAMETERS will cause the text to be left justified within the text field. See form SAMPLE-2, field PREL, for a simple example. See form SAMPLE-2, field PMAR, for an example with a MUMPS function.
| |||||||||||||||||||
| MENU PARAMETERS | The TKPOP parameters to allow a TKPOP window to
appear when HELP is pressed for table lookup. The format is:
column,optional row\flags\# columns\title\ where flags are:
See Toolkit I, TKPOP, for a more thorough discussion. See form SAMPLE-2, field PREL, for an example. | |||||||||||||||||||
| PROCESS ACK | Process Acknowledgements, Yes or No. TK-FORM
normally skips processing a field if an answer had no editing activity. If
answered yes, the field is always processed, i.e., pattern match, validate
and put transform always occur as they are described. No current example in the SAMPLE forms. | |||||||||||||||||||
| VALIDATION CODE | Enter eXecutable MUMPS code if additional validation of the input, X,
is required. The code should set $Truth to
true if the answer is valid, false if it is invalid. Nil answers are
checked. Please see MULTIPLE ITEMS (defined in this section) for varied
behavior of these parameters. See form SAMPLE-3, field DOD, for an example. | |||||||||||||||||||
| FETCH TRANSFORM | Enter eXecutable MUMPS code if X is to be modified
before it is displayed on the screen. This code is always executed at
least once when the screen is first displayed, and then again everytime the
value of field is edited. An example of a FETCH TRANSFORM would be to transform a date stored in $Horolog format to a calendar format prior to the date being displayed on the screen. See form SAMPLE-3, field DOD, for an example. | |||||||||||||||||||
| PUT TRANSFORM | Enter eXecutable MUMPS code if X is to be modified after it is entered
or edited by the user and before it is "put" into the database. An
example might be transforming a calendar format date into $Horolog
format. The PUT TRANSFORM is only executed if the field is edited or if PROCESS ACKNOWLEDGE is on. See form SAMPLE-3, field DOD, for an example. In this particular example, please note that since VALIDATE was required to perform a transformation in order to perform a date check, VALIDATE has a secondary effect of leaving the transformed value in the variable ANSIDATE. Thus, the PUT TRANSFORM simply has to pick up the already transformed value rather than transform it again. | |||||||||||||||||||
| MULTIPLE ITEMS | A field may be designated as a multiple by defining parameters
effecting the display, storage and editing of the multiple. The format of
this parameter string is an eight piece string as follows:
V or H, # display, V or H, inc, # max, W or C, J or S
See form SAMPLE-1, field ADDRESS, for a "Wrap off" example. | |||||||||||||||||||
| WINDOW | Not implemented. |
If a field operator needs to refresh the form, it may do so by invoking AP0^TKFORM4 with a DO. The refresh code requires the following parameters:
REFRESH=Starting row:ending row
The rows must be inclusive. REFRESH will be killed by AP0. The rows must be counted from home, starting at 1. For example, if:
REFRESH=5:14
then rows 5 through 14 will be refreshed if AP0^TKFORM4 is invoked.
The form attribute Force Window Compile must be answered YES.
The refresh module requires TK-FORM's scope. The refresh module will not work if you invoke it within your application's NEW.
operator;field id;reference
The reference is the MUMPS reference used to return or send any values associated with the operation. For example, the operator FD (fetch the current display value for a field in TK-FORM) would return the value in this reference. The reference may contain valid $Piece syntax such as $P(^MYGLOB(S1,1),"^",4) or $P(NAME,"\",12) if the value is to be fetched or stored from a delimited reference.
These instructions do not change the value of $T.
To process the instruction, eXecute the MUMPS variable "op".
If a field is a multiple (see TK-FORM Field Attributes section), and data are being put or fetched from the screen, then the instruction format is:
operator;field.multiple;reference
This syntax would not be used for the Activate, Deactivate, Mandatory, Required, or Not Mandatory operators which relate to an entire field. The first instruction set format identified in this section would be used for these operators. The multiple is the occurance in the multiple answers which is of interest. Multiples start counting from one inclusively. The occurance identifer is the multiple suffix of the operand.
For an example of an instruction with a multiple suffix, consider that many forms have a field called REMARKS. This field typically is a multiple since it allows and displays many lines of text. Often remarks utilize standard phrases. To place the phrase "BAD DEBT" in the first line of REMARKS, use the following MUMPS code:
S LINE1="BAD DEBT",opi="PDSP;REMARKS.1;LINE1" X opThe eXecuting of op results in "BAD DEBT" being put into the display data and the stored data, and being displayed on the form in the first line of the REMARKS field.
The above instruction should be placed in a field which preceeds REMARKS. Its exact location may vary within the selected preceeding field: the instruction may be placed in the VALIDATE or PUT attribute since these attributes are eXecuted. If the latter two attributes invoke a MUMPS program, then the MUMPS program might incorporate the TK-FORM instruction.
When using the PUT and FETCH operators with multiples or groups, remember that you can only PUT or FETCH to items that have been displayed. The Form Attribute called Force Window Compile must also have been answered "YES".
| Operator | Description |
| A | Activate a field. TK-FORM fields start as active fields, but may be deactivated by the deactivate operator. The activate operator takes a deactivated field and activates it. The multiple suffix is ignored. No reference. |
| AM | Activate and make Mandatory. Combines the operators Activate and Mandatory into one instruction. |
| AR | Activate and make Required. Combines the operators Activate and Required into one instruction. |
| B | Branch to the identified field. This operator changes RX, so it may not work if the application code also changes RX after op is invoked. The multiple suffix is ignored. No reference. |
| C | Cancel and return. Cancels current field and form. No data is stored and the control is returned back to the calling routine with a "C" in the return code of tkform. |
| D | Deactivate a field, i.e., remove it from the list of fields which may be edited. The multiple suffix is ignored. No reference. |
| DN | Deactivate and make Not Mandatory. Combines the operators Deactivate and Not Mandatory into one instruction. |
| FD | Fetch Display Value. Fetches the current displayed value in TK-FORM for the identified field. Requires a return reference. |
| FS | Fetch Store Value. Fetches the current stored value in TK-FORM for the identified field. Requires a return reference. |
| M | Mandatory. Makes a field mandatory. The multiple suffix is ignored. No reference. |
| N | Not Mandatory. Changes a previously mandatory field to one that is not mandatory. The multiple suffix is ignored. No reference. |
| PD | Put Display Value without painting the value on the screen. Puts the value from the reference into the identified field for the display. Example: if a field is a date, the displayed value is in calendar format rather than $Horolog format. Thus, if the field's displayed value must be changed, this instruction would change the displayed value but not the display itself. Requires a source reference. |
| PDP | Put Display Value with Paint. Same as above, but also paints this value onto the screen. PDP changes the displayed value as well as the display. |
| PS | Put Store Value. Puts the value from the reference into the identified field's storage. Example: the $Horolog format for a date. |
| PDS | Put the Display and Store Value without painting the value on the screen. |
| PDSP | Put the Display and Store Value and Paint on the screen. |
| R | Real-time required mandatory. Makes a field real time required mandatory, so that TK-FORM will not continue to the next field unless this field is answered. The multiple suffix is ignored. No reference. |
| V | Validate. Executes the validation code for the designated field using the value stored in the reference as X. |
| X | MUMPS eXecute. Special instruction format: X;;MUMPS code to be eXecuted |
Given the example of a transaction entry system with the following fields: TRANSACTION CODE, FEE, COMMENT. Assume the codes are from the list ^trans(code)=description;fee. If the fee piece of the data is nil, then the fee is to be asked. The problem is that this must be determined after CODE is answered. Therefore, CODE should have PROCESS ACKNOWLEDGEMENT answered YES. CODE's PUT TRANSFORMATION should invoke a module which does the following if FEE is not to be asked:
| 1 | S opi="PDSP;FEE;$P(^trans(X),"";"",2)" X op ;This will put the FEE into the display and into storage ;actually displays the FEE in the FEE's field. |
| 2 | S opi="D;FEE" X op ;FEE is deactivated. It will not be asked. CODE will ;proceed to COMMENT. If the cursor up key is pressed in ;COMMENT, TK-FORM will move to CODE, not FEE, since FEE is ;deactivated. |
| 0 | I X]"",$P(^trans(X),";",2)]"" G 1 S opi="FS;CODE;OLDX" X op ;fetch the current code into OLDX I OLDX]"",$P(^trans(OLDX,";",2))]"" S opi="A;FEE" X op ;the above makes sure FEE is active Q |
| opi | = n, the number of instructions to be invoked |
| opi(1) | = first instruction |
| opi(2) | = second instruction |
| . | |
| . | |
| . | |
| opi(n-1) | = n-1 instruction |
| opi(n) | = n'th instruction |
